SKU
MBK-180IM
"M" mounting bracket for 180 kgf holding force electromagnets
€13.00
Description

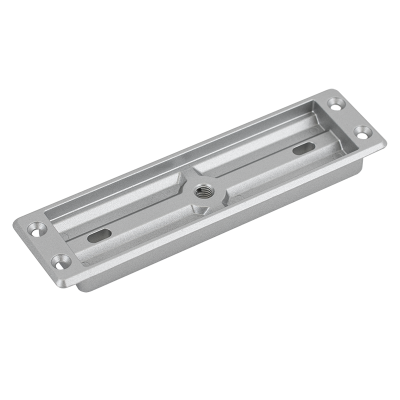

Electromagnet brackets are designed to solve the installation of electromagnets and their counter plates. No matter what type of door you want to install your electromagnet on, or what kind of magnet it is, among our various brackets you will definitely find the right piece for you. The MBK-180IM is a one-piece 'M' bracket, which allows the flush mounting of the counter plate of thr electromagnets with a holding force of 180 kg into the door.
 |
 |
 |

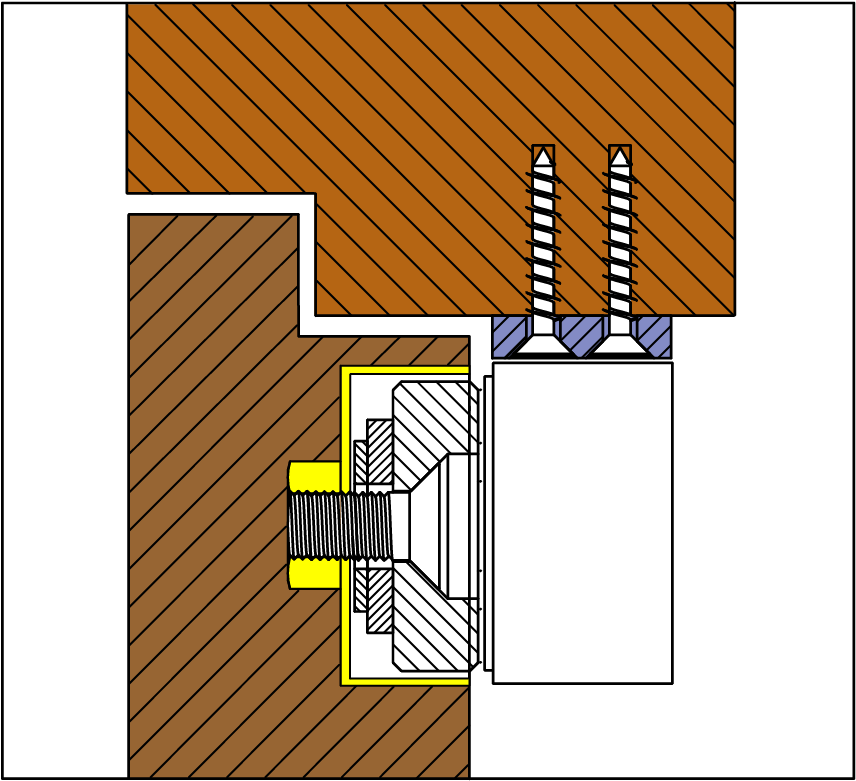

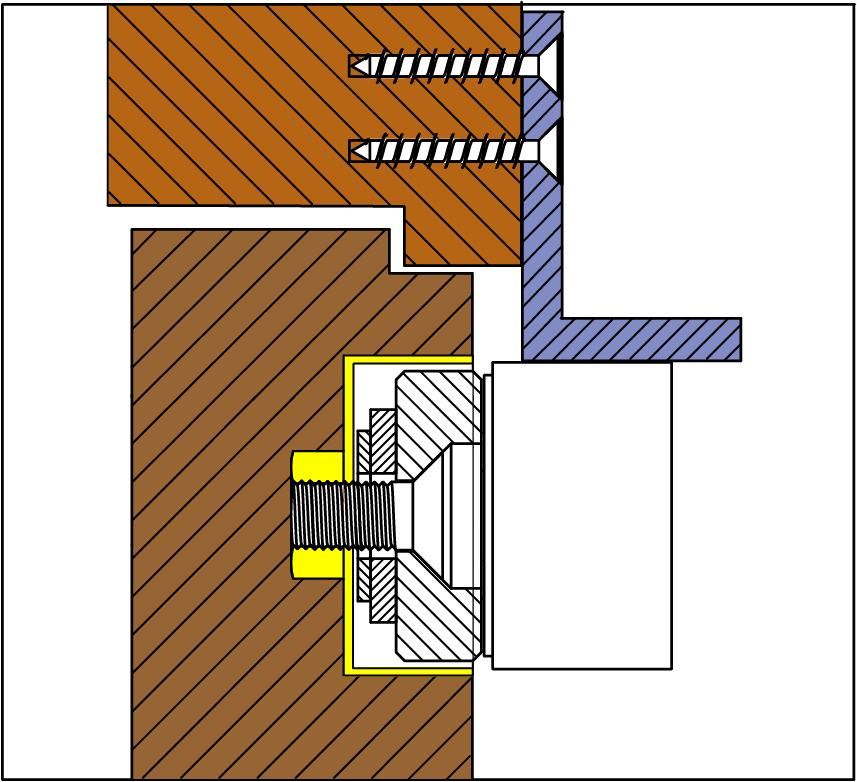

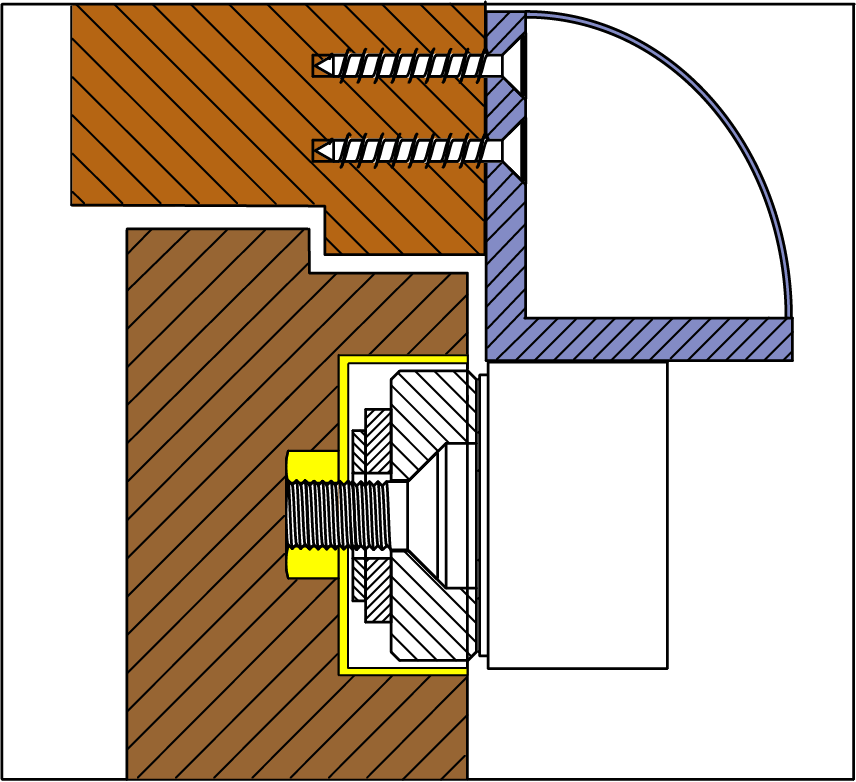

In the images, the 'IM' bracket is highlighted in yellow, serving both aesthetic and practical functions. Its primary function is the neat, 'invisible' mounting of the armature plate of the surface-mounted magnet and maintaining the counter plate in the correct position.
Downloads
More Information
| Mounting | flush mounted |
|---|---|
| Surface | anodized |
| Material | aluminium alloy |
| Bracket's type | "M" bracket |
| Bracket's function | armature plate for counter part |
| Recommended use | for plastic doors, for metal doors, for wooden doors, in the case of inward/outward opening doors |
| Dimensions | 160 x 42 x 14 mm |
| Mortise dimension | 138 x 39 x 10 mm |
|---|---|
| Package contents | bracket, screw set |
| Related electromagnetic locks | YM-180H(LED), YM-180M, YM-180N, YM-180N(LED), YM-180W-S |
| Number of fixing points | 4 pcs |
| Gross weight | 0,13 kg |
| Warranty | 12 months |
| Manufacturer | YLI |
| Product category | A |
