0036 1 406 98 08
SKU
SW200SLIM

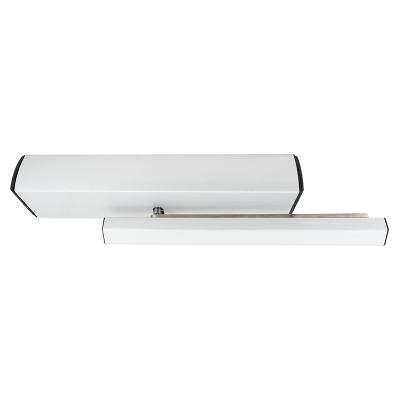

Automatic door opener - slide arm - 120 kg / 1800 mm
€498.00
Description
The SW200SLIM automatic door opener is designed for doors with a maximum weight of 120 kg or a width of up to 1800 mm. It provides a durable and straightforward solution for barrier-free access in shops, offices, and residential entrances.
In addition to its aesthetic appearance, the device offers versatile programming options and can be easily expanded with external transmitters and sensors. You can adjust the operation mode of the electric lock output and the door opening angle. The device can be controlled via a remote control, which allows for setting three different operating modes (always open/automatic/locked) and also facilitates door opening.
The package includes the door opener mechanism, sliding rail, two remote controls, and the screws needed for installation.
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 3A @ 24V DC |
| Consumption (W) | 55 W |
| Parameters of a movable door leaf | 60 kg/1800 mm <-> 120 kg/900 mm |
| Opening and closing time | adjustable |
| Opening speed | 20-99 unit |
| Closing speed | 20-99 unit |
| Reclosure delay | 0-60 s |
| Maximal opening angle | 115° |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact) |
| Behaviour (in case of power off) | freely movable in the case of a fail-safe electric lock |
| Operating modes | Always open, automatic opening, single open-close, full lock mode |
| Adjustable operating mode | with the factory remote control, with a program switch |
|---|---|
| Other functions | uninterruptable (SW200SLIM/LIB), interlock system, synchronized operation, self-learning, obstacle detection |
| Dimension of body | 518 x 81 x 115 mm |
| Arm size and type | 500 mm, sliding arm |
| Mounting | surface mounted, above the door |
| Recommended use | in the case of inward opening doors |
| Installation area | indoor |
| Package contents | door operator, mounting bracket, screw set, scissor arm |
| Compatible products | electric lock, access control system, IR sensor, combined sensor (IR and microwawe), scissor arm |
| IP rating | IP21 |
| Environmental temperature | -20°C ~ +50°C |
| Gross weight | 7,15 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
