SKU
YK-PHC102-NO/NC

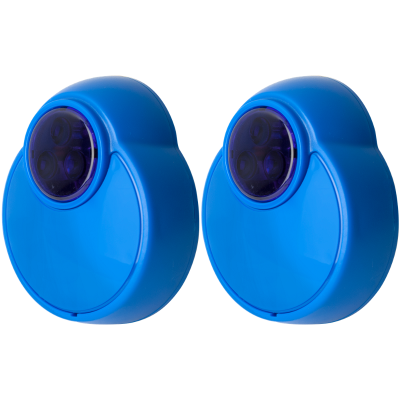

Photocell sensor for barriers - NO/NC
€63.00
Description
The YK-PHC102-NO/NC is a photocell sensor pair, ideal for setting up protection against barriers closing. The package includes one transmitter and one receiver, both of which need to be connected to the power supply. Optionally, an adjustable height stand can be purchased.
Downloads
More Information
| Voltage (V) | 9 - 16 V |
|---|---|
| Voltage type | AC/DC |
| Type of sensor | infrared (IR) |
| Type of connection | wired |
| Controlled output type | 1 relay (NO-NC-COM) |
| Controlled output current rating | 3A @ 25V AC | 3A @ 30V DC |
| Housing material | plastic ABS |
| Dimensions | 87 x 70 x 18 mm |
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
|---|---|
| Installation area | indoor, outdoor |
| Package contents | sensor unit |
| IP rating | IP44 |
| Environmental temperature | -20°C ~ 50°C |
| Gross weight | 0,2 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
