0036 1 406 98 08
SKU
YK-TS2000-PRO

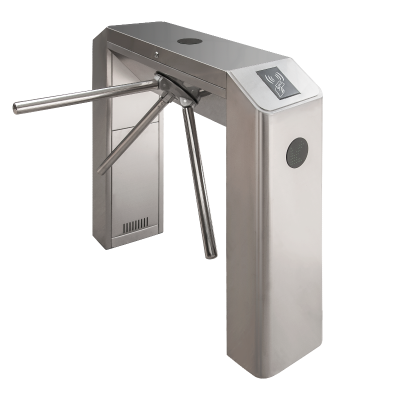

Turnstile - bridge-shape - semi automatic - drop-arm - ZKTeco - PRO
€1,925.00
Description
Turnstiles are one of the best tools for controlled personal entry, ensuring monitored, secure, quick, and convenient access for people. Due to their design and operation, semi-automatic turnstiles are more durable and thus suitable for high-demand locations such as schools and factories.
The YK-TS2000-PRO is a semi-automatic, drop-arm, bidirectional turnstile designed to control people's entry in places with medium or low security levels, such as office buildings, educational institutions, and commercial areas. With its smooth and quiet operation and low energy consumption, it is ideal for controlling and monitoring entry in high-traffic areas.
The stainless steel housing provides an elegant appearance, and its compact size allows for installation in various locations. The device is factory-equipped with the possibility to install a CCA3 access control unit, along with the necessary cables and connectors. The "drop-arm" function allows the arms to be lowered in an emergency to ensure the safe evacuation of people.
The turnstile can be installed both outdoors and indoors, in rain-protected areas.
| Auxiliary materials required for maintenance: | |||
 |
 |
 |
 |
|
BER-FEKTISZTITO Brake cleaner spray 500ml |
BER-INOXAPOLO Stainless steel care spray 400ml |
BER-UNISPRAY6+ Universal spray 400ml |
BER-HLS500 Lubricant spray 500ml |
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6,25A @ 24V DC |
| Consumption (W) | 60 W |
| Body design | brushed INOX |
| Dimension of body | 280 x 990 x 1110 mm |
| Arm size and type | 500 mm (brushed) |
| Arm cross section | ø38 mm |
| Arm load capacity | middle of arm 80 kg, end of arm 40 kg |
| Return by springs | yes (helps to take position) |
| Lockable? | automatically after rollover |
| Product family | semi-automat, bridge-shape, turnstile |
| Automatic closeure | with DIP switch (default 5s) |
| Reclosure delay | 5-60 s |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Other functions | N ammount of passage in one direction (adjustable with DIP switch) |
| Communication | RS485 (with BXC-SPIDER communicator) |
| Passage direction | one-way |
|---|---|
| Passing speed | 25-30 persons/min |
| Passing width | 580 mm |
| Emergency mode | in case of a power outage or emergency signal, it drops the arm |
| Built-in LED | above (dynamic) |
| Package contents | turnstile, arms, fixing screws (in concrete) |
| Compatible products | remote control module, BXC-SPIDER - RS485 communicator |
| Recommended use | medium traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Life time | MCBF: 1 million turnovers |
| IP rating | IP54 |
| Environmental temperature | -28°C ~ +60°C |
| Humidity tolerance (non-condensing) | 5 - 85% |
| Gross weight | 50 kg |
| Warranty | 24 months |
| Certificates | CE |
| Manufacturer | ZKTeco |
| Product category | B+ |
