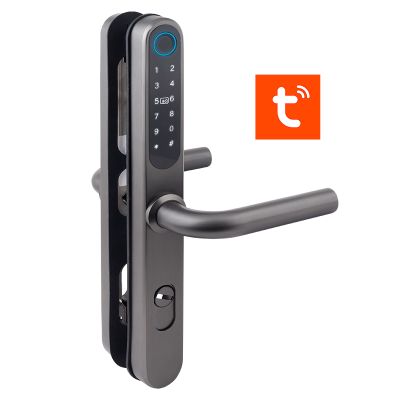

Smart RFID door lock - fingerprint/RFID/PIN - 13,56 MHz MIFARE - BLE - TUYA - IP65

Budapesti raktár: Nincs készlet
Add to Compare
€186.00
Description

Stand-alone office locks are perfect for hotels, lodges, and offices with their elegant, modern appearance and high-level security, but they can be installed on any indoor door. By incorporating the reader, handles, escutcheon, and lock control, they provide a compact solution anywhere.

The 929PG-62-F(TUYA) is an easy-to-install smart Airbnb lock that supports authentication via fingerprint, RFID, or PIN code.

The lock can be programmed using the TUYA app and integrated into a smart home system, offering numerous advantages. The device can be shared with other TUYA users, opened via the app, logs all access events, and sends PUSH notifications about them. Users can be created, each with individually assigned fingerprints, RFID tags, and PIN codes. Additionally, permanent, temporary, or time-restricted PIN codes can be set.


Energy-saving operation: The device supports energy-saving operation and is in sleep mode when not in use. To wake it up, touch the keypad with your finger.

Installation is extremely simple; no additional wiring or software is required. The handle can be freely pressed from the outside while locked, but the door can only be opened after authentication. The set does not include the mortise lock.

Reversible opening direction: The external and internal handles can be reversed by loosening and unscrewing a cross-headed screw each. Important! If you change the opening direction of the device, rotate the arrow on the axis locking socket also.

The set does not include the mortise lock.

More Information

More Information
Voltage (V) 6 V
Voltage type battery (4 x AAA)
Maximum current consumtion (A) 300 mA
Stand-by current consumption (A) 70 µA
Communication BLE 2.4 GHz, Wifi 2.4 GHz (with GW-01)
Opening possibilities PIN, with TUYA app, RFID, biometric, mechanical (with handle/turning knob and key)
Length of PIN 8 - 10 digit
Type of RFID 13,56 MHz MIFARE
Reading range 1 ~ 3 cm
Programming keyboard, mobil application
Memory capacity administrator: 1 (TUYA) | user: 399 in total (99 fingerprint, 250 RFID, 50 code)
External power supply option yes (USB-C)
Opening direction (DIN 107) universal
Field of use locking AirBnB doors
Mounting surface mounted
Package contents lock, screw set
Interax distance 70 mm, 72 mm, 85 mm, 90 mm, 92 mm
Installation area indoor
Automatic relocking (without actual opening) 5 sec
Dimension of external unit 315 x 37 x 22 mm
Dimension of inernal unit 315 x 37 x 22 mm
Maximal door width 25-55 mm
Life time ~ 1 year
Notifications draining battery (LED and sound signal)
IP rating IP65
Environmental temperature -10°C ~ +60°C
Gross weight 1,9 kg
Warranty 12 months
Certificates CE
Product category D
