0036 1 406 98 08
SKU
PS-10TEN-PRIVATE
Stand-alone cabinet lock with keypad - 125 kHz EM - fix mode
€123.00
Description
The PSLOCK cabinet and safe locks are ideal for hotels, gyms, wellness centers, jewelry and watch stores, and shopping malls. Our company distributes both combination locks and cabinet locks that can be opened with RFID cards.
In case the power voltage drops below a critical level, a flashing LED light indicates that the battery will run out, and the cabinet cannot be locked.

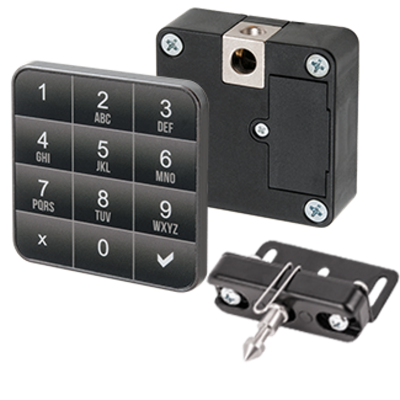

The PS-10TEN-PRIVATE is a keypad-operated cabinet lock, ideal for controlling drawers and display cases.
- - The device operates in normal mode (fix), meaning it can handle a predetermined number of enrolled RFID tags (cards, key fobs, wristbands, etc.).
- - Memory capacity in normal mode: master RFID (1 pc) - user RFID (1 pcs)
- - It can be used with 125 kHz RFID tags (EM4100, EM4305) available from our company.
Downloads
More Information
| Voltage (V) | 3 V |
|---|---|
| Voltage type | battery (1 x CR123A) |
| Operating modes | standalone, fix mode |
| Opening possibilities | PIN |
| Length of PIN | 4 digit |
| Programming | keyboard |
| Memory capacity | master: 1 code | user: 1 code |
| Opening direction (DIN 107) | universal |
| Field of use | cabinets |
| Mounting | surface mounted |
| Package contents | lock, armature plate, keyboard, battery(s) |
| Installation area | indoor |
| Automatic relocking (without actual opening) | 3 sec |
| Distance between fixing holes | 48 x 48 mm |
|---|---|
| Dimension of external unit | 60 x 60 x 4 mm |
| Dimension of inernal unit | 60 x 60 x 22 mm |
| Shape of bolt/latch | bolt |
| Maximal door width | 20 mm |
| Life time | 25.000 opening (with new battery) |
| Notifications | draining battery (LED) |
| Environmental temperature | 5°C ~ +35°C |
| Humidity tolerance (non-condensing) | max. 90% |
| Gross weight | 0,29 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | PSLock |
| Product category | G |
