PS-SOLO-125-74BKP+
Stand-alone cabinet lock - 125 kHz EM - fix mode
€95.00
Description
The PSLOCK cabinet and safe locks are ideal for hotels, gyms, wellness centers, jewelry and watch stores, and shopping malls. Our company distributes both combination locks and cabinet locks that can be opened with RFID cards.

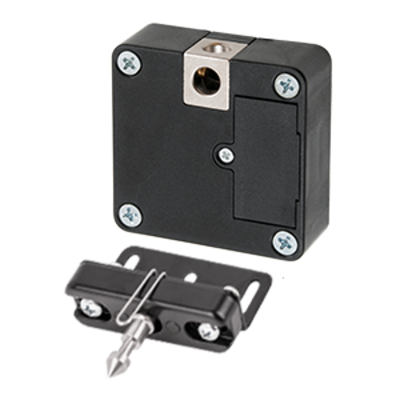

The PS-SOLO-125-74BKP+ is an RFID reader cabinet lock designed for invisible installation. Its antenna can read through furniture panels up to 20 mm thick. It's ideal for places where invisible installation is aesthetically and security-wise essential, such as drawers and display cases.
- - The device operates in normal mode (fix), meaning it can handle a predetermined number of enrolled RFID tags (cards, key fobs, wristbands, etc.).
- - The set includes: 1 programmer master card, 2 user cards, 1 battery, the opposing side, and the lock body..
- - Memory capacity in normal mode: master RFID (1 pc) - user RFID (49 pcs)
- - With the master card, the device can be opened in case the user card is lost.
- - It can be used with any 125 kHz RFID tags available from our company (EM4100, EM4305).
Downloads
More Information
| Voltage (V) | 3 V |
|---|---|
| Voltage type | battery (1 x CR123A) |
| Operating modes | standalone, fix mode |
| Opening possibilities | RFID |
| Type of RFID | 125 kHz EM |
| Reading range | 1 ~ 3 cm |
| Programming | RFID tag |
| Memory capacity | master: 1 RFID | user: 49 RFID |
| Opening direction (DIN 107) | universal |
| Field of use | cabinets |
| Mounting | surface mounted |
| Package contents | lock, armature plate, RFID tag(s), battery(s) |
| Installation area | indoor |
| Automatic relocking (without actual opening) | 3 sec |
| Distance between fixing holes | 48 x 48 mm |
|---|---|
| Dimension of external unit | 60 x 60 x 4 mm |
| Dimension of inernal unit | 60 x 60 x 22 mm |
| Shape of bolt/latch | bolt |
| Maximal door width | 20 mm |
| Life time | 25.000 opening (with new battery) |
| Notifications | draining battery (LED) |
| Environmental temperature | 5°C ~ +35°C |
| Humidity tolerance (non-condensing) | max. 90% |
| Gross weight | 0,3 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | PSLock |
| Product category | G |
