ADEL RFID door lock - 13,56 MHz MF - DIN L

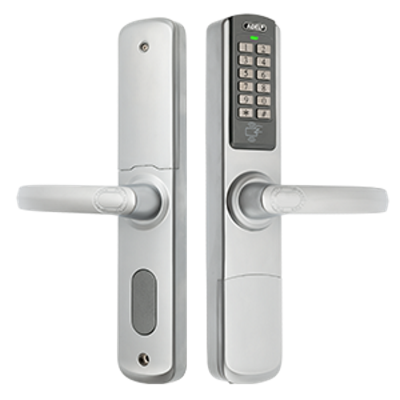

The DLA-5500-PW is a robust, aesthetically pleasing, metal-bodied high-security office lock with both code and special MIFARE card capabilities. The device features a universal, reversible handle (depending on the opening direction), which can be freely depressed when in the locked position. The door can be opened after entering the authorized code or swiping the card.

The external and internal lock sides need to be connected with the red-black wire. The lock and the mortise lock must be connected with the (black-blue-white-red) connector. The device is easily programmable using the push buttons. During installation, it's important that the "arrow" markings on the shaft and on the backside of the external unit align.

When selecting the opening direction, consider that it is according to DIN standard, with the control unit installed on the external side.

The set includes the lock body and a lock insert with 2 keys (for emergency unlocking). The lock operates with AA batteries. BATTERIES ARE NOT INCLUDED.

The dorn distance: refers to the distance between the front plate and the handle axis.
The handle - key center distance: refers to the distance between the center of the handle axis and the center of the keyhole.
