0036 1 406 98 08
SKU
SD-60
Electromagnetic door holder - adjustable head (90°) - wall/floor mount
€43.50
Description
The purpose of the door holder magnets is to keep the door in the open position until they receive a signal (e.g., fire alarm). At that point, the magnet releases the door, allowing it to close. Their easy installation and wiring ensure quick commissioning, and most of them also have an emergency release button for closing the door without control. They are perfect for fire-resistant doors.

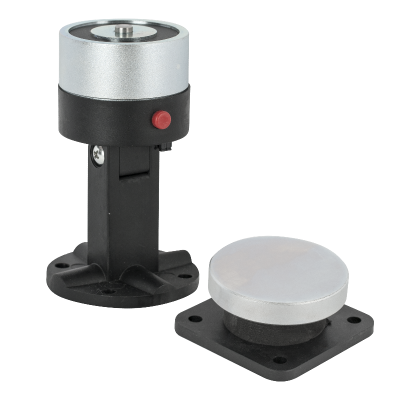

The SD-60 is a wall- or floor-mounted, 65 kg holding force, round door holder magnet, with adjustable voltage requirements and position (its head can be rotated up to 90°). Its low power consumption ensures economical use.
More Information
| Voltage (V) | 12 / 24 V (default 24 V) |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 96 mA (12 V) | 49 mA (24 V) |
| Power consumption (W) | 1,15 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 1,15 W |
| Expected per year consumption (kWh) | 10,1 kWh |
| Holding force (N) | 637 N |
| Holding force (kgf) | 65 kgf |
| Operating modes | needs power to close |
| Build-in release button | yes |
| Opening possibilities | built-in push button, controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
| Low power consumption? | yes ( ≤ 260 mA ) |
| Monitoring | lock sensor |
| Type of monitoring | HALL sensor |
|---|---|
| Lock monitoring signal type | NO/NC |
| LED feedback | no |
| Field of use | keeping fire doors open |
| Installation area | indoor |
| Mounting | surface mounted, wall-mount |
| Package contents | electromagnetic door holder, counter plate, fixing screws |
| Dimension (in 90°) | ø50 x 78,5 mm |
| Dimension (in 180°) | ø50 x 100 mm |
| Dimension of stand | ø60 x 4,8 mm |
| Dimension of armature plate | 60 x 60 x 28 mm |
| IP rating | unclassified |
| Environmental temperature | -10°C ~ 55°C |
| Gross weight | 0,69 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
