0036 1 406 98 08
SKU
YD-611IP

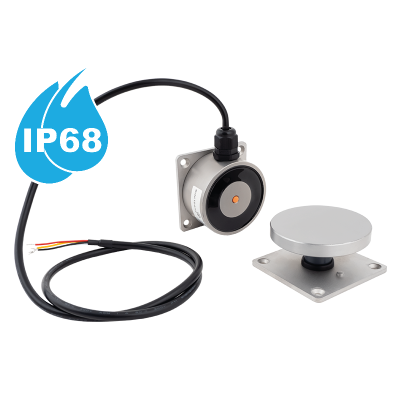

Electromagnetic door holder - IP68 - wall mount
€108.00
Description
The task of the door holder magnets is to keep the door in the open position until a signal is received at the boundary of the fire section. In case of a fire alarm, the power supply to the magnet is interrupted, allowing the door to close. Ideal for fire alarm systems.
The YD-611IP is a waterproof (IP68), 150 kg holding force, surface-mounted door holder magnet suitable for outdoor installation.
Ideal for ensuring the open position of fire-resistant doors in outdoor environments or on tanker ships, where robust doors need to be kept open amidst harsh weather conditions.
Downloads
More Information
| Voltage (V) | 12 / 24 V (default 24 V) |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 260 mA (12 V) |130 mA (24 V) |
| Power consumption (W) | 3,12 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 3,12 W |
| Expected per year consumption (kWh) | 27,3 kWh |
| Holding force (N) | 1472 N |
| Holding force (kgf) | 150 kgf |
| Operating modes | needs power to close |
| Build-in release button | none |
| Opening possibilities | controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
|---|---|
| Low power consumption? | yes ( ≤ 260 mA ) |
| Field of use | keeping fire doors open, keeping outdoor doors open |
| Installation area | indoor, outdoor |
| Mounting | surface mounted, wall-mount |
| Package contents | electromagnetic door holder, counter plate, fixing screws |
| Dimensions | 97,5 x 75 x 39 mm |
| Dimension of armature plate | 75 x 75 x 40 mm |
| IP rating | IP68 |
| Gross weight | 1,75 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
