0036 1 406 98 08
SKU
MBK-180IN
"I" mounting bracket for the counterpart of magnets with a holding force of 180 kg
€10.00
Description

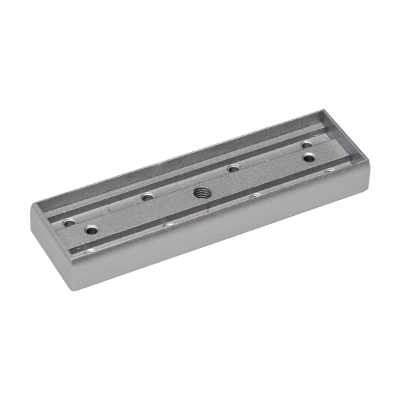

The flat magnet brackets are designed to facilitate the installation of flat magnets and their counterparts. No matter what type of door you want to install your flat magnet on, or what type of magnet you have, you will definitely find the right bracket among our various options. The MBK-180IN is a one-piece "I" bracket that allows the installation of the YM-180N type flat magnet counterpart on outward-opening doors.
 |
 |
 |
In the images, the "I" bracket is shown with a green color, which serves both aesthetic and practical functions. Its primary function is to securely fix the counterpart of the flat adhesive magnet and keep it in the correct position.
Downloads
More Information
| Mounting | surface mounted |
|---|---|
| Surface | anodized |
| Material | aluminium alloy |
| Bracket's type | "I" bracket |
| Bracket's function | armature plate for counter part |
| Recommended use | for plastic doors, for metal doors, for wooden doors, in the case of outward opening doors |
| Dimensions | 141,9 x 44 x 14,5 mm |
| Package contents | bracket, screw set |
|---|---|
| Related electromagnetic locks | YM-180H(LED), YM-180M, YM-180N, YM-180N(LED), YM-180W-S, YM-180ND(LED) |
| Number of fixing points | 8 pcs |
| Gross weight | 0,15 kg |
| Warranty | 12 months |
| Manufacturer | YLI |
| Product category | A |
