0036 1 406 98 08
SKU
SB-150ZLA
"ZL" mounting bracket for SM-150A electromagnet
€16.95
Description

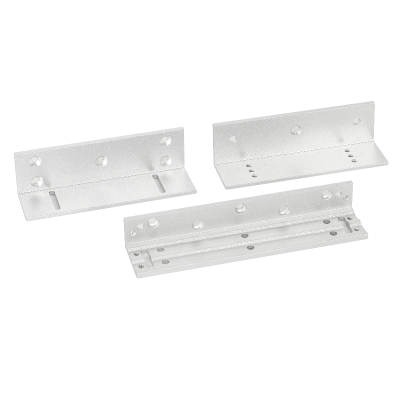

Electromagnet brackets are designed to solve the installation of electromagnets and their counter plates. No matter what type of door you want to install your electromagnet on, or what kind of magnet it is, among our various brackets you will definitely find the right piece for you. The SB-150ZLA is a three-part bracket set for SM-150A electromagnets to be installed on inward-opening doors.
 |
In the diagram, you can see the two-part "ZL" mounting bracket set in a bluish-purple color. The "ZL" bracket is an excellent solution for closing inward-opening doors with a flat electromagnet. Among the adjustment options provided by the 'L' bracket, you will certainly find the one most suitable for your installation environment—you can choose to attach the magnet to either the narrow or the wider side. Meanwhile, the "Z" bracket helps with securing the counter plate. By adjusting the depth of the 'Z' bracket, you can easily compensate for the distance between the door panel and the frame if necessary. Recommended usage: For inward-opening doors |
 |
|
Downloads
More Information
| Mounting | surface mounted |
|---|---|
| Surface | anodized |
| Material | aluminium alloy |
| Bracket's type | "ZL" bracket |
| Bracket's function | mounting bracket for magnet and counter part |
| Recommended use | for plastic doors, for metal doors, for wooden doors, in the case of inward/outward opening doors |
| Dimensions | "Z": 130 x 38 x 38 mm (x2) "L": 170 x 39 x 26 mm |
| Package contents | bracket, screw set |
|---|---|
| Related electromagnetic locks | SM-150A |
| Number of fixing points | "Z": 5 pcs "L": 5 pcs |
| Gross weight | 0,35 kg |
| Warranty | 12 months |
| Manufacturer | SILIN |
| Product category | A |
