0036 1 406 98 08
SKU
YM-280H(LED)

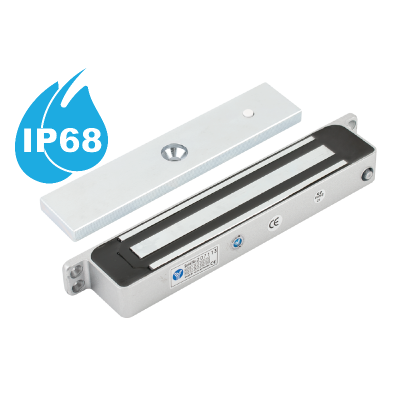

Surface-mounted electromagnetic lock - waterproof (IP68) - 280kgf - LED
€87.00
Description
|
|
|
Electromagnetic locks (flat magnets) provide an ideal solution for all types of doors. These locks are vandal-proof, do not contain moving mechanical parts, thus can be operated safely in the long term. Their installation is simple, and they can be securely mounted in various ways with the help of mounting brackets. |
|
The YM-280H(LED) is an electromagnetic lock with a holding force of 180kgf, designed for surface mount and operates with 12/24 V DC. Provided with LED and lock status (NO-NC-COM) indication. It is ideal for securing the closure of small-sized doors and outdoor small gates. The electromagnetmagnet has an IP68 protection rating, making it suitable for outdoor installation. |
Downloads
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 560 mA (12 V) | 280 mA (24 V) |
| Power consumption (W) | 6,72 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 6,72 W |
| Expected per year consumption (kWh) | 58,8 kWh |
| Holding force (N) | 2746 N |
| Holding force (kgf) | 280 kgf |
| Operating modes | needs power to close |
| Build-in release button | none |
| Opening possibilities | controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
| Monitoring | lock sensor |
| Type of monitoring | HALL sensor |
| Lock monitoring signal type | NO |
|---|---|
| LED feedback | yes |
| Field of use | entrance doors |
| Installation area | outdoor |
| Mounting | surface mounted with bracket |
| Package contents | Electromagnet with factory mounting possibilities, armature plate, screw set, hex key |
| Related brackets | MBK-280GU, MBK-280IN, SH-SA25-gy, SH-SA25-wh, YH-SA, YH-SB |
| Preloaded door opening | yes |
| Dimensions | 235 x 47 x 26,5 mm |
| Dimension of armature plate | 180 x 39 x 13 mm |
| IP rating | IP68 |
| Environmental temperature | -10°C ~ +55°C |
| Common installation errors | FIGYELEM! Az YV-100 síkmágnes vezérlők elektromos zárvezérlő kimenete nem stabilizált. Ezért ha a megtáplálás 12V AC vagy annál nagyobb váltakozó feszültségű, akkor PCB-504 feszültségstabilizáló használata kötelező. |
| Gross weight | 2,10 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
