YM-60N

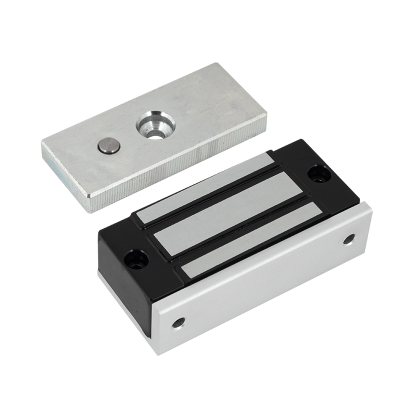

Surface-mounted electromagnetic lock - 60kg
€26.50
Description
 |
|
Electromagnetic locks (flat magnets) provide an ideal solution for all types of doors. These locks are vandal-proof, do not contain moving mechanical parts, thus can be operated safely in the long term. Their installation is simple, and they can be securely mounted in various ways with the help of mounting brackets. |
|
The YM-60N is an electromagnetic lock with a holding force of 60gkf, designed for surface mount and operates with 12/24 V DC. It is ideal for securing windows and cabinets. This electromagnet does not contain freely accessible electronics, so although it does not have a specified IPXX rating, it can be installed outdoors with waterproof connector and wiring. WARNING! This electromagnetic lock is not suitable for securing doors due to its low holding force. For small/normal-sized doors, it is recommended to choose a magnet with at least a 180kgf holding force. The installation of the flat magnet should always take place in an internal, so called protected environment, so that unauthorized individuals cannot access either the attachment points or the wires. |
Downloads
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 160 mA (12 V) | 80 mA (24 V) |
| Power consumption (W) | 1,92 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 1,92 W |
| Expected per year consumption (kWh) | 16,8 kWh |
| Holding force (N) | 588 N |
| Holding force (kgf) | 60 kgf |
| Operating modes | needs power to close |
| Build-in release button | none |
| Opening possibilities | controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
| LED feedback | no |
| Field of use | cabinets, drawers |
|---|---|
| Installation area | indoor |
| Mounting | surface mounted with bracket |
| Package contents | Electromagnet with factory mounting possibilities, armature plate, screw set, hex key |
| Related brackets | MBK-70U, MBK-70Z |
| Preloaded door opening | yes |
| Dimensions | 80 x 36,5 x 24 mm |
| Dimension of armature plate | 75 x 32 x 10 mm |
| IP rating | unclassified |
| Environmental temperature | -10°C ~ +55°C |
| Common installation errors | FIGYELEM! Az YV-100 síkmágnes vezérlők elektromos zárvezérlő kimenete nem stabilizált. Ezért ha a megtáplálás 12V AC vagy annál nagyobb váltakozó feszültségű, akkor PCB-504 feszültségstabilizáló használata kötelező. |
| Gross weight | 0,57 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
