SKU
YM-350W

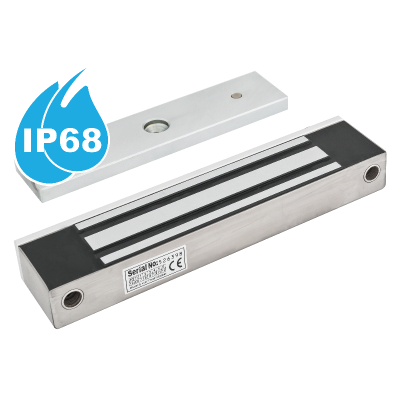

Surface-mounted electromagnetic lock - waterproof (IP68) - 350kgf
€112.00
Description
|
|
|
Electromagnetic locks (flat magnets) provide an ideal solution for all types of doors. These locks are vandal-proof, do not contain moving mechanical parts, thus can be operated safely in the long term. Their installation is simple, and they can be securely mounted in various ways with the help of mounting brackets. |
|
The YM-350W is an electromagnetic lock with a holding force of 350kgf, designed for surface mount and operates with 12/24 V DC. It is ideal for securing the closure of normal-sized doors and outdoor small gates. The electromagnetmagnet has an IP68 protection rating, making it suitable for outdoor installation. |
Downloads
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 510 mA (12 V | 255 mA (24 V) |
| Power consumption (W) | 6,12 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 6,12 W |
| Expected per year consumption (kWh) | 53,6 kWh |
| Holding force (N) | 3432 N |
| Holding force (kgf) | 350 kgf |
| Operating modes | needs power to close |
| Build-in release button | none |
| Opening possibilities | controlled electrical signal |
| Type of control | power cut |
| Reclosure delay | - |
| Behaviour (in case of power off) | Fail-safe |
| LED feedback | no |
| Field of use | gates |
|---|---|
| Installation area | outdoor |
| Mounting | surface mounted |
| Package contents | Electromagnet with factory mounting possibilities, armature plate, screw set, hex key |
| Related brackets | MBK-350IN, MBK-350ZL-W |
| Preloaded door opening | yes |
| Dimensions | 227 x 53 x 28 mm |
| Dimension of armature plate | 190 x 45 x 13 mm |
| IP rating | IP68 |
| Environmental temperature | -10°C ~ +55°C |
| Common installation errors | FIGYELEM! Az YV-100 síkmágnes vezérlők elektromos zárvezérlő kimenete nem stabilizált. Ezért ha a megtáplálás 12V AC vagy annál nagyobb váltakozó feszültségű, akkor PCB-504 feszültségstabilizáló használata kötelező. |
| Gross weight | 2,71 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
