Electromagnet controller - without box - for intercom - 12V AC/13,5V DC - battery in - NC output - timing

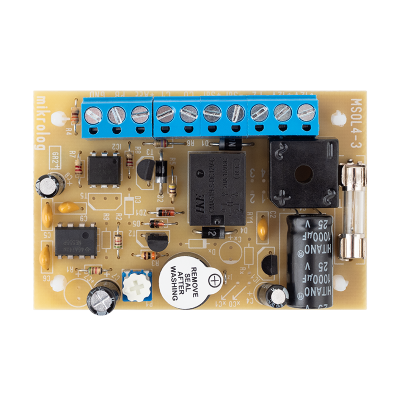

The YV-100|-BOX is a plastic, terminal box-free electromagnet control device. It ensures a stable 12V DC power supply for magnets (and other devices requiring continuous power). It features active (pulse signal) and passive (dry contact) control inputs, adjustable timing, and an uninterruptible power supply option for versatile usage.

WARNING! The electric lock controller output of the flat magnet controller is not stabilized. Therefore, if the flat magnet controller is powered by 12V AC or higher alternating voltage, the lock controller outputs (+SOL, -SOL) may present 16V DC or higher direct voltage. This is unsuitable for flat adhesion magnets/electromagnets operating at 12V DC, causing them to overheat excessively. In such cases, it is necessary to insert a PCB-504 voltage stabilizer between the controller and the magnet.
