0036 1 406 98 08
SKU
YV-101
Electromagnet controller - YM-280T(LED)H - 12V AC/DC - battery in - NC output
€16.50
Description

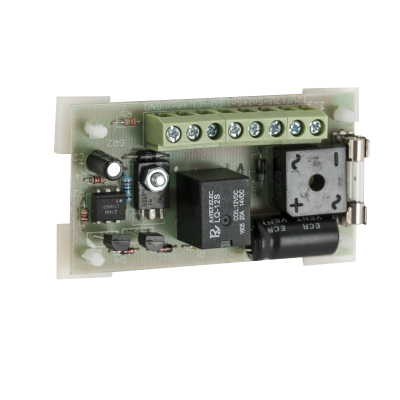

The YV-101 is a surface magnet controller for YM-280T(LED)H type surface magnets. It allows the magnet to be connected to the intercom's output, and thanks to its battery input, uninterrupted power supply can also be easily achieved.
Downloads
More Information
| Product category | A |
|---|---|
| Installation mode | can be built in |
| Installation area | into protected area |
| Power supply | 12 V AC/DC |
| Current consumption | 900 mA (12 V DC) |
| Power | 10,8 W |
| Dimensions | 44 x 70 x 22 mm |
|---|---|
| Buzzer | No |
| Built-in cylinder | No |
| Output signal type | NC/COM |
| Output load capacity | 12V feszültség kimenettel rendelkezik |
| Warranty (for legal entities) | 12 months |
| Certificates | CE |
