0036 1 406 98 08
SKU
YX-300B
Key-operated switch – with LED push button – EUROPROFILE compatible – NO output
€24.80
Description

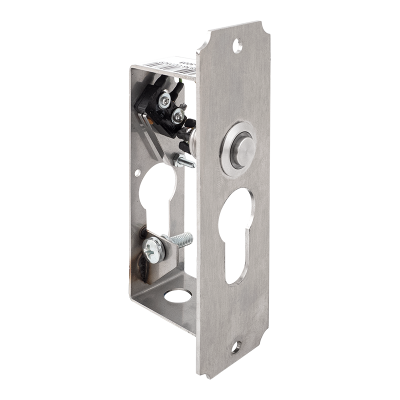

The YX-300B is a lock cylinder switch with a LED push button. It is an ideal solution for controlling fail-secure (voltage-operated) electric locks with either a push button or a lock cylinder.
When the lock cylinder is turned, it activates the micro switch (short-circuits the NO/COM terminals). The micro switch has NO/NC/COM outputs, with a maximum capacity rating of 2A at 48V DC. The device's NC/COM output can ONLY be operated with a lock cylinder.
Downloads
More Information
| Product category | A |
|---|---|
| Installation mode | flush mountable |
| Installation area | in place of the external shield |
| Power supply | 12 V DC |
| Current consumption | 150 mA (12 V DC) |
| Power | 1,8 W |
| Dimensions | 123 x 36 x 36,5 mm |
| Pushbutton type | microswitch |
| LED colour | green |
|---|---|
| Buzzer | No |
| Built-in cylinder | No |
| Compatible cylinder | EUROPROFIL |
| Output signal type | NO/COM |
| Output load capacity | 2A@48V |
| Warranty (for legal entities) | 12 months |
| Other properties | Az eszköz NC/COM kimenetét CSAK zárbetéttel lehet működteetni. |
| Certificates | CE |
