0036 1 406 98 08
SKU
KZH3-N

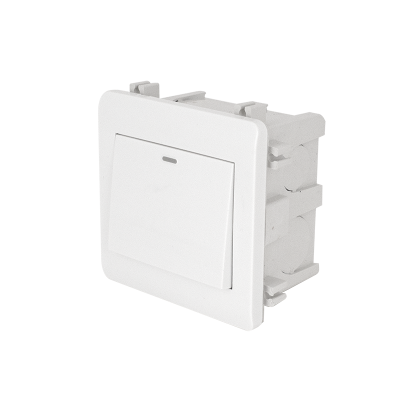

Electromagnet controller with switch – for intercom – 12V DC – NC output
€26.50
Description
The KZH3-N is an electromagnet control device that provides a stable 12V DC supply for surface magnets. The device operates on 12V DC. The connected 12V DC surface magnet can be controlled by pressing the tilt switch or by applying a timed signal (12-24V AC/DC) to the device's open signal input (pins 5-6).
Downloads
More Information
| Product category | A |
|---|---|
| Installation mode | flush mountable |
| Installation area | into protected area |
| Power supply | 12 V DC |
| Current consumption | 470 mA (12 V DC) |
| Power | 5,64 W |
| Dimensions | 86 x 86 x 65 mm |
| Timing | 2 / 5 / 7 / 15 mp |
|---|---|
| Pushbutton type | microswitch |
| Buzzer | No |
| Built-in cylinder | No |
| Output signal type | NC/COM |
| Warranty (for legal entities) | 12 months |
| Certificates | CE |
