0036 1 406 98 08
SKU
SB-280LA
"L" mounting bracket for SM-280LEDA electromagnet
€13.55
Description
Electromagnet brackets are designed to solve the installation of electromagnets and their counter plates. No matter what type of door you want to install your electromagnet on, or what kind of magnet it is, among our various brackets you will definitely find the right piece for you.

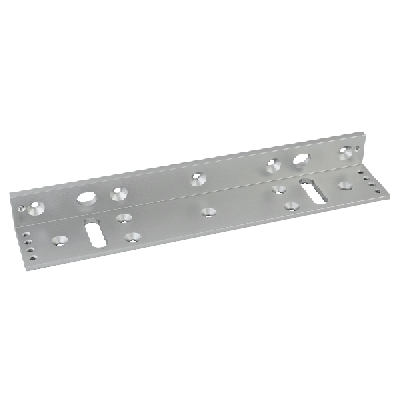

The SB-280LA is a one-piece 'L' bracket, which allows the installation of SM-280LEDA type surface-mounted magnets on outward-opening doors.
 |
In the illustration, the 'L' mounting bracket, which secures the magnet, is shown in a bluish-purple color. In cases where more mounting options and greater strength are needed, and when the door and frame close nearly or completely flush, installation with the 'L' bracket is ideal, as it allows the magnet to be secured in 3-5 different positions on both its narrow and wide sides. Recommended use: For inward or outward-opening doors. It expands the mounting options for the magnet depending on the installation environment. |
Downloads
More Information
| Mounting | surface mounted |
|---|---|
| Surface | anodized |
| Material | aluminium alloy |
| Bracket's type | "L" bracket |
| Bracket's function | mounting bracket for magnet |
| Recommended use | for plastic doors, for metal doors, for wooden doors, in the case of outward opening doors |
| Dimensions | 250 x 47 x 30,5 mm |
| Package contents | bracket, screw set |
|---|---|
| Related electromagnetic locks | YM-280LEDA |
| Number of fixing points | 5/7 pcs |
| Gross weight | 0,29 kg |
| Warranty | 12 months |
| Manufacturer | SILIN |
| Product category | A |
