0036 1 406 98 08
SKU
DORCAS-PF1-PROFAST

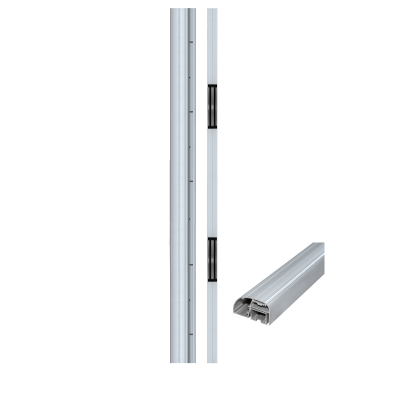

Electromagnetic lock solution for inward opening aluminium doors with handle - 2x300 kgf
€473.00
Description
The DORCAS-PF1-PROFAST provides a ready-made solution for the magnetic lock-based locking of inward-opening aluminum doors. It can be universally installed for both DIN-right and DIN-left doors, ensuring quick installation, easy wiring, durability, and an aesthetic appearance due to its anodized aluminum design. It can be an ideal choice even in modern environments. The door is secured by two electromagnetic locks with a holding force of 300 kgf each.
Downloads
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 2 x 550 mA (12 V) |
| Power consumption (W) | 13,2 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 13,2 W |
| Expected per year consumption (kWh) | 115,5 kWh |
| Holding force (N) | 2 x 2942 N |
| Holding force (kgf) | 2 x 300 kgf |
| Operating modes | needs power to close |
| Build-in release button | none |
| Opening possibilities | controlled electrical signal |
| Type of control | power cut |
| Behaviour (in case of power off) | Fail-safe |
| Monitoring | lock sensor |
| Type of monitoring | HALL sensor |
| Lock monitoring signal type | NO/NC |
|---|---|
| LED feedback | no |
| Opening direction (DIN 107) | universal |
| Field of use | inward opening, closing in one plane, interior door, entrance doors, plastic doors, aluminium doors, wooden doors |
| Installation area | indoor |
| Mounting | surface mounted |
| Package contents | handle with armature plate, electromagnet |
| Preloaded door opening | yes |
| Dimensions | 46 x 35 x 2500 mm |
| Dimension of handle | 103 x 67,5 x 2500 mm |
| IP rating | IP42 |
| Gross weight | 20,00 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | DORCAS |
| Product category | A |
