0036 1 406 98 08
SKU
SL-133

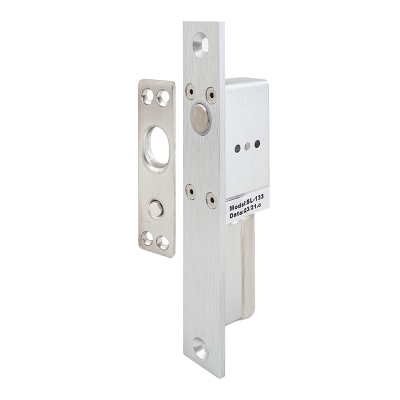

Electric bolt lock - 12V DC - fail-safe - door status monitoring - mechanical opening
€67.00
Description
The SL-133 is a flush-mounted electric bolt lock. Its behavior during power outage is fail-safe. It has a door status feedback, and the auto-close time is adjustable.
The electric bolt lock requires continuous power supply, and the electronic control must provide an opening signal via the control wire for unlocking. The device only locks when the opposing side is detected, and if no opening occurs, it automatically relocks after the set open time has elapsed following the opening signal. In the event of a power outage (in Fail-Secure mode), it can be manually opened with a key. In Fail-Safe mode, the key can only be used for locking.
It's important to always follow the installation and wiring instructions; incorrectly wired latch electronics, for example, controlled by power interruption, can be damaged.
WARNING! It is FORBIDDEN to install electric latches operating on the solenoid principle in escape routes. If the door is under any tension for any reason, the lock (with solenoid operating) cannot exert enough force to retract the bolt into position. As a result, the door will not open until the tension is released.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Power supply requirement | permanent |
| Maximum current consumtion (A) | 880 mA |
| Stand-by current consumption (A) | 160 mA |
| Power consumption (W) | 1,92 W |
| Power consumption during solenoid operation (W) | 10,56 W |
| Expected per year consumption (kWh) | ~ 16,9 kWh |
| Breaking point (N) | 7845 N |
| Breaking point (kgf) | 800 kgf |
| Type of control | control wire (dry contact) |
| Opening possibilities | controlling wire - GND shortcut |
| Reclosure delay | 0 - 3 s |
| Behaviour (in case of power off) | Fail-safe |
| Product family | SILIN bolt lock |
| Monitoring | door sensor |
| Type of monitoring | HALL sensor |
| Door monitoring signal type | NO/NC |
| Opening direction (DIN 107) | universal |
|---|---|
| Field of use | interior door, entrance doors, aluminium doors, wooden doors |
| Mounting | flush mounted (hidden), flush mounted with bracket |
| Package contents | bolt lock, armature plate, fixing screw |
| Related brackets | BBK-601 |
| Installation area | indoor |
| Dimensions | 160 x 25 x 34 mm |
| Distance between fixing holes | 140 mm |
| Dimension of armature plate | 90 x 23 x 2 mm |
| Mortise dimension | 110,5 x 20,5 x 30,5 mm |
| Shape of bolt/latch | bolt |
| Dimension of bolt/latch | 15 x Ø12,6 mm |
| IP rating | unclassified |
| Environmental temperature | -10°C ~ +55°C |
| Gross weight | 0,42 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
