0036 1 406 98 08
SKU
DORCAS-50-N-305-424

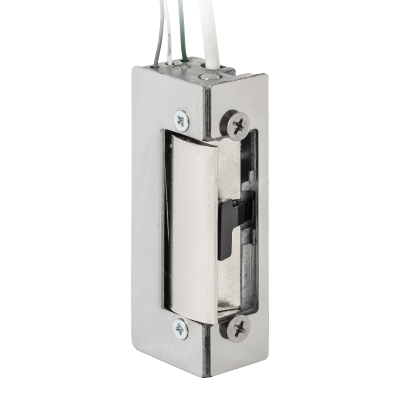

Electric strike - high breaking resistance - 24V DC - fail-secure - latch monitoring - without faceplate
€150.00
Description
|
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. DORCAS is a Spanish manufacturer with an extremely wide range of products, offering high-quality electric locks. The DORCAS-50 series features DORCAS's symmetrical, high holding force electric strikes. The device operates in a fail-safe mode, meaning it requires power to be locked. It comes with a latch sensor and can be kept powered for a long time due to its low power consumption. MAINTENANCE! Regular inspection of the mechanics of electric strikes (refreshing lubrication) is necessary to ensure optimal operation. Zárnyelvérzékelővel rendelkezik, alacsony fogyasztásának köszönhetően sokáig lehet áram alatt tartani. |
||||
 |
 |
 |
 |
 |
More Information
| Voltage (V) | 24 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 180 mA (24 V) |
| Resistance (Ω) | 133 Ω |
| Power consumption (W) | 4,32 W |
| Power comsumption on opening (W) | 4,32 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 0,05 kWh |
| Breaking point (N) | 7845 N |
| Breaking point (kgf) | 800 kgf |
| Operating modes | needs power to open |
| Type of control | timed pulse (1~15 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Product family | 50 - high breaking point, normal |
| Low power consumption? | yes ( ≤ 260 mA ) |
| Simmertical? | yes |
| Narrow? | no |
| Mini? | no |
| Radial latch? | no |
| Opening memory? | no |
| Flexibile jaw? | no |
| Unlock feature? | no |
|---|---|
| Latch monitoring | yes |
| Monitoring | door sensor, latch sensor |
| Type of monitoring | Microswitch |

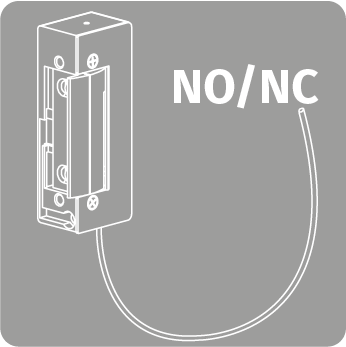

| Door monitoring signal type | NO/NC |
| Opening direction (DIN 107) | universal |
| Field of use | interior door, entrance doors |
| Mounting | flush mounted |
| Related faceplates | DORCAS-BX-25, DORCAS-B-hg, DORCAS-EZR-25-gy, DORCAS-EZR-25-TOP, DORCAS-EZH-25-1.5X-L/R, DORCAS-EZH-25-FX-L/R, DORCAS-EZH-25-hg, DORCAS-L-25-gy, DORCAS-LX-25, DORCAS-GX-INOX, DORCAS-F101-L/R, F53, F54, DORCAS-H1-L/R, DORCAS-H2-L/R |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 75 x 21 x 28 mm Távtartó lemezzel szerelt modelleknél 1 mm-el nagyobb a mélység. A lemez eltávolítható. |
| Distance between fixing holes | 52,5 mm |
| Life time | 500.000 opening |
| IP rating | unclassified |
| Environmental temperature | -25°C ~ +50°C |
| Common installation errors | Az elektromos zár kenésének javítására vagy megújítására a WD40 oldó és korrózió eltávolító spray nem alkalmas, használata TILOS! |
| Voltage drop | ATTENTION! The proper operation of the device is highly sensitive to voltage drop. The lock must be supplied with a stable 24 V DC power source. |
| Gross weight | 0,22 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | DORCAS |
| Product category | A |
