0036 1 406 98 08
SKU
DORCAS-99-2-NF-305-412-PRE
Symmetrical electric strike - 12V DC - fail-secure - PRE function - latch monitoring - without faceplate
€135.00
Description
|
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. DORCAS is a Spanish manufacturer with an extremely wide range of products, offering high-quality electric locks. The DORCAS-99-PRE series encompasses DORCAS's narrow, low-profile, radial latch electric strikes. Due to its mini size, it's ideal for narrow door frames. The device operates in a fail-secure mode, meaning it requires power to unlock. This product is PRELOAD-enabled, meaning it can still open even under 20 kgf preload conditions. Installation is recommended for plastic doors. DORCAS electric strikes should always be installed indoors, in a place well protected from rain. If you are looking for an electric strike suitable for outdoor installation, the waterproof series models are the right choice. MAINTENANCE! Regular inspection of the mechanics of electric strikes (refreshing lubrication) is necessary to ensure optimal operation. |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 300 mA |
| Resistance (Ω) | 40 Ω |
| Power consumption (W) | 3,6 W |
| Power comsumption on opening (W) | 3,6 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 0,03 kWh |
| Breaking point (N) | 3236 N |
| Breaking point (kgf) | 330 kgf |
| Operating modes | needs power to open |
| Type of control | timed pulse (1~60 mp - 12 V DC) | pulse (<1 mp - 24 V DC) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Product family | 99 - allrounder, PRE - preload (200 N) |
| Low power consumption? | yes ( ≤ 300 mA ) |
| Simmertical? | no |
| Narrow? | yes |
| Mini? | no |
| Radial latch? | yes |
| Opening memory? | no |
| Flexibile jaw? | yes (+3 / 0 mm) |
| Unlock feature? | no |
| Latch monitoring | yes |
|---|---|
| Monitoring | door sensor, latch sensor |
| Type of monitoring | Microswitch |
| Door monitoring signal type | NO/NC |
| Opening direction (DIN 107) | universal |
| Field of use | interior door, entrance doors, plastic doors, aluminium doors, wooden doors, doors under preasure (200N) |
| Mounting | flush mounted |
| Related faceplates | DORCAS-BX-22, DORCAS-EZR-22-gy, DORCAS-LX-22 |
| Compatible jaw | DORCAS-JAW-99-2-N-305, DORCAS-JAW-99-2-N-305-MIM |
| Installation area | indoor |
| Preloaded door opening | yes ( max. 200N) |

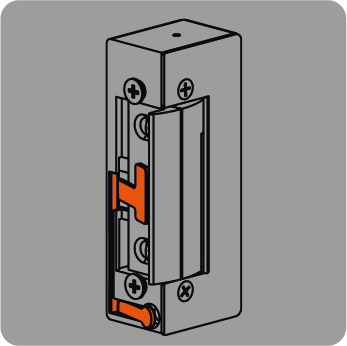

| Dimensions | 90,5 x 16,5 x 25,5 mm Távtartó lemezzel szerelt modelleknél 1 mm-el nagyobb a mélység. A lemez eltávolítható. |
| Distance between fixing holes | 52,5 mm |
| Life time | 200.000 opening |
| IP rating | unclassified |
| Environmental temperature | -25°C ~ +50°C |
| Common installation errors | Az elektromos zár kenésének javítására vagy megújítására a WD40 oldó és korrózió eltávolító spray nem alkalmas, használata TILOS! |
| Voltage drop | ATTENTION! The proper operation of the device is highly sensitive to voltage drop. The lock must be supplied with a stable 12 V DC power source. |
| Gross weight | 0,14 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | DORCAS |
| Product category | A |
