0036 1 406 98 08
SKU
DORCAS-99-1-AbDF-TOP-DOUBLE

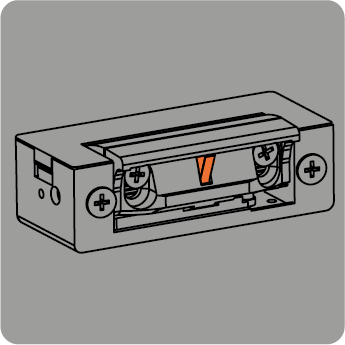

Symmetrical electric strike for hidden mount - fail-secure - external memory - without faceplate
€64.00
Description
|
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. DORCAS is a Spanish manufacturer with an extremely wide range of products, offering high-quality electric locks. The DORCAS-99-1-TOP series encompasses DORCAS's low-profile, radial latch electric strikes. Due to its TOP feature, the strike allowed to mount hidden into the door frame. The device operates in a fail-secure mode, meaning it requires power to unlock. DORCAS electric strikes should always be installed indoors, in a place well protected from rain. If you are looking for an electric strike suitable for outdoor installation, the waterproof series models are the right choice. MAINTENANCE! Regular inspection of the mechanics of electric strikes (refreshing lubrication) is necessary to ensure optimal operation. |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
More Information
| Voltage (V) | 10 - 24 V |
|---|---|
| Voltage type | AC/DC |
| Maximum current consumtion (A) | 320 mA (12 V) |
| Resistance (Ω) | 37,5 Ω |
| Power consumption (W) | 3,8 W |
| Power comsumption on opening (W) | 3,8 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 0,03 kWh |
| Breaking point (N) | 3236 N |
| Breaking point (kgf) | 330 kgf |
| Operating modes | needs power to open |
| Type of control | pulse (<1 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Product family | 99 - allrounder, TOP DOUBLE - hidden mount |
| Low power consumption? | no |
| Simmertical? | yes |
| Narrow? | no |
| Mini? | yes |
| Radial latch? | yes |
| Opening memory? | yes (standard) |
| Flexibile jaw? | yes (+2 /- 1 mm) |
|---|---|
| Unlock feature? | yes |
| Latch monitoring | no |
| Opening direction (DIN 107) | universal |
| Field of use | interior door, entrance doors, aluminium doors |
| Mounting | flush mounted (hidden) |
| Related faceplates | DORCAS-EZR-25-TOP, DORCAS-EZH-25-TOP, DORCAS-YS-X, DORCAS-YL-X |
| Compatible jaw | DORCAS-JAW-99-1-Ab-TOP-DOUBLE |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 66 x 20,1 x 25,5 mm |
| Distance between fixing holes | 52,5 mm |
| Life time | 200.000 opening |
| IP rating | unclassified |
| Environmental temperature | -25°C ~ +50°C |
| Common installation errors | Az elektromos zár kenésének javítására vagy megújítására a WD40 oldó és korrózió eltávolító spray nem alkalmas, használata TILOS! |
| Voltage drop | ATTENTION! If the cable connector is oriented downward during installation, the lock’s performance may be significantly impacted by voltage drop effects |
| Gross weight | 0,15 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | DORCAS |
| Product category | A |
