0036 1 406 98 08
SKU
DORCAS-41-AaDF

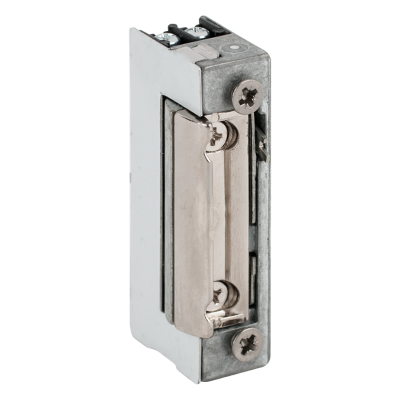

Narrow symmetrical electric strike - fail-secure - internal memory - unlock feature - without faceplate
€23.40
Description
|
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. DORCAS is a Spanish manufacturer with an extremely wide range of products, offering high-quality electric locks. The DORCAS-41 series encompasses DORCAS's narrow, low-profile, radial latch electric strike locks. Due to its mini size, it's ideal for narrow door frames. The device operates in a fail-safe mode, meaning it requires power to be locked. Installation is recommended for plastic doors. DORCAS electric strikes should always be installed indoors, in a place well protected from rain. If you are looking for an electric strike suitable for outdoor installation, the waterproof series models are the right choice. ATTENTION! Due to their operation, electric strikes with internal memory (Aa) can only be safely controlled with a pulse signal (<1s). If the door is actually opened and closed before the signal ends, the memory will remember the opening after the signal interruption, allowing entry even though the door has already been exited. MAINTENANCE! Regular inspection of the mechanics of electric strikes (refreshing lubrication) is necessary to ensure optimal operation. |
||||
 |
 |
 |
 |
 |
More Information
| Voltage (V) | 8 - 12 V |
|---|---|
| Voltage type | AC/DC |
| Maximum current consumtion (A) | 700 mA (12 V DC) |
| Resistance (Ω) | 17 Ω |
| Power consumption (W) | 8,4 W |
| Power comsumption on opening (W) | 8,4 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 0,07 kWh |
| Breaking point (N) | 3040 N |
| Breaking point (kgf) | 310 kgf |
| Operating modes | needs power to open |
| Type of control | pulse (<1 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Product family | 41 - narrow |
| Low power consumption? | no |
| Simmertical? | yes |
| Narrow? | yes |
| Mini? | no |
| Radial latch? | yes |
| Opening memory? | yes (internal) |
| Flexibile jaw? | yes (+1 /- 1 mm) |
|---|---|
| Unlock feature? | yes |
| Latch monitoring | no |
| Opening direction (DIN 107) | universal |
| Field of use | interior door, entrance doors |
| Mounting | flush mounted |
| Related faceplates | DORCAS-BX-22, DORCAS-LX-22, YSHB-08-L/R, DORCAS-GU-L/R |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 67 x 16,5 x 28 mm |
| Distance between fixing holes | 52,5 mm |
| Life time | 300.000 opening |
| IP rating | unclassified |
| Environmental temperature | -25°C ~ +50°C |
| Common installation errors | Az elektromos zár kenésének javítására vagy megújítására a WD40 oldó és korrózió eltávolító spray nem alkalmas, használata TILOS! |
| Voltage drop | ATTENTION! If the cable connector is oriented downward during installation, the lock’s performance may be significantly impacted by voltage drop effects, based on laboratory power supply testing: for electromechanical locks rated at 8–12 V, a minimum of 10 V must be present at the lock’s terminals to ensure reliable actuation of the solenoid mechanism. |
| Gross weight | 0,14 kg |
| Warranty | 36 months |
| Certificates | CE |
| Manufacturer | DORCAS |
| Product category | A |
