SKU
DORCAS-52-AaF

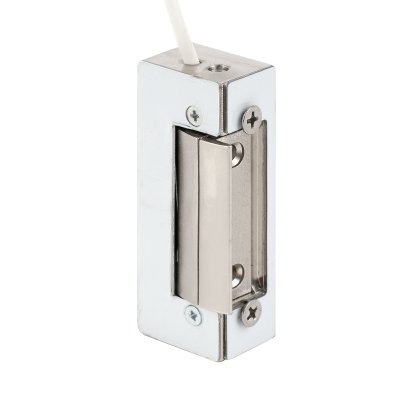

Fireproof electric strike - normal size - fail-secure - internal memory - without faceplate
€233.00
Description
|
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. DORCAS is a Spanish manufacturer with an extremely wide range of products, offering high-quality electric locks. The DORCAS-52 series encompasses DORCAS's fire-resistant products with normal size strikes. The device operates in a fail-secure mode, meaning it requires power to unlock. DORCAS electric strikes should always be installed indoors, in a place well protected from rain. If you are looking for an electric strike suitable for outdoor installation, the waterproof series models are the right choice. The device comes with a fire resistance performance declaration, indicating that it maintains its integrity and insulation (EI) for 120 minutes. ATTENTION! Due to their operation, electric strikes with internal memory (Aa) can only be safely controlled with a pulse signal (<1s). If the door is actually opened and closed before the signal ends, the memory will remember the opening after the signal interruption, allowing entry even though the door has already been exited. MAINTENANCE! Regular inspection of the mechanics of electric strikes (refreshing lubrication) is necessary to ensure optimal operation. |
||||
 |
 |
 |
 |
 |
More Information
| Fireproof | yes (EI120) |
|---|---|
| Voltage (V) | 8 - 12 V |
| Voltage type | AC/DC |
| Maximum current consumtion (A) | 700 mA (12 V) |
| Resistance (Ω) | 17 Ω |
| Power consumption (W) | 8,4 W |
| Power comsumption on opening (W) | 8,4 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 0,07 kWh |
| Breaking point (N) | 9806 N |
| Breaking point (kgf) | 1.000 kgf |
| Operating modes | needs power to open |
| Type of control | pulse (<1 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Product family | 52 - fireproof, normal size |
| Low power consumption? | no |
| Simmertical? | yes |
| Narrow? | no |
| Mini? | no |
| Radial latch? | no |
| Opening memory? | yes (internal) |
|---|---|
| Flexibile jaw? | yes (+4 / 0 mm) |
| Unlock feature? | no |
| Latch monitoring | no |
| Opening direction (DIN 107) | universal |
| Field of use | fire resistance rating is required (EI120) |
| Mounting | flush mounted |
| Related faceplates | DORCAS-BX-25, DORCAS-LX-25 |
| Installation area | indoor |
| Dimensions | 75 x 21 x 28 mm Távtartó lemezzel szerelt modelleknél 1 mm-el nagyobb a mélység. A lemez eltávolítható. |
| Distance between fixing holes | 52,5 mm |
| Life time | 500.000 opening |
| IP rating | unclassified |
| Environmental temperature | -25°C ~ +50°C |
| Common installation errors | Az elektromos zár kenésének javítására vagy megújítására a WD40 oldó és korrózió eltávolító spray nem alkalmas, használata TILOS! |
| Voltage drop | ATTENTION! If the cable connector is oriented downward during installation, the lock’s performance may be significantly impacted by voltage drop effects, based on laboratory power supply testing: for electromechanical locks rated at 8–12 V, a minimum of 10 V must be present at the lock’s terminals to ensure reliable actuation of the solenoid mechanism. |
| Gross weight | 0,26 kg |
| Warranty | 36 months |
| Certificates | CE, DoP |
| Manufacturer | DORCAS |
| Product category | A |
