0036 1 406 98 08
SKU
SX-10

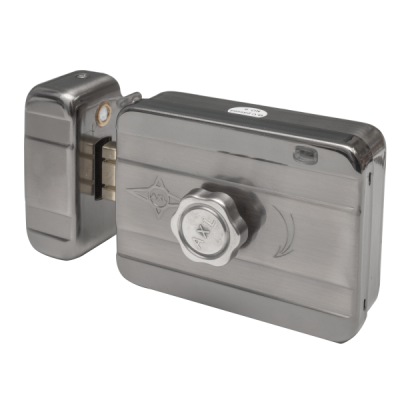

Motor-driven electromechanical lock - surface-mounted - 12V DC - fail-secure
€43.00
Description
The SX-10 is a motorized electromechanical lock that can be universally installed on both right-handed and left-handed doors. It is easy to install and features a sturdy stainless steel (INOX) design. The device receives continuous power supply and can be opened with a signal. The latch only locks when it detects the magnet in the counterpart. It emits an audible signal if the door remains open.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 700 mA |
| Power consumption (W) | 8,4 W |
| Power comsumption on opening (W) | 8,4 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 5,2 kWh |
| Breaking point (N) | 19613 N |
| Breaking point (kgf) | 2.000 kgf |
| Operating modes | needs power to open |
| Type of control | control wire |
| Opening possibilities | key, turning knob, controlled electrical signal |
| Automatic relocking (without actual opening) | 5 sec |
| LED feedback | yes |
| BUZZER | yes (also prompt in case of open door) |
| Opening direction (DIN 107) | universal |
| Field of use | inward opening, entrance doors |
|---|---|
| Mounting | surface mounted |
| Package contents | lock, armature plate, cylinder lock, screw set, keys |
| Installation area | indoor, outdoor (rain-protected) |
| Dimensions | 130 x 100 x 40 mm |
| Dimension of armature plate | 100 x 36 x 40 mm |
| Shape of bolt/latch | latch (cuboid shape) |
| Maximal door width | 100 mm |
| Compatible lock cylinder | own cylinder lock |
| Life time | 400.000 opening |
| Environmental temperature | -40°C ~ 50°C |
| Gross weight | 1,59 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
