0036 1 406 98 08
SKU
YB-100+

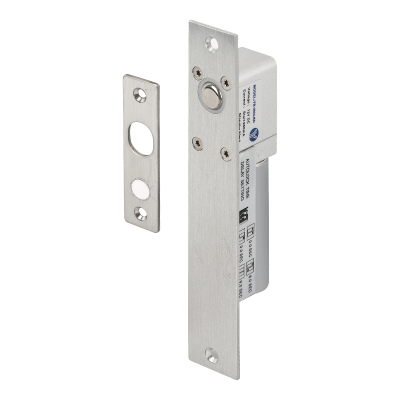

Electric bolt lock - 12V DC - fail-safe - door status monitoring - auto-close timing
€56.00
Description
The YB-100+ is a flush-mounted electric bolt lock. Its behavior during power outage is fail-safe. It has a door status feedback, and the auto-close time is adjustable.
The electric bolt lock is controlled by power interruption. The device only locks when the opposing side is detected, and if no opening occurs, it automatically relocks after the set open time has elapsed following the opening signal.
It's important to always follow the installation and wiring instructions.
WARNING! It is FORBIDDEN to install electric latches operating on the solenoid principle in escape routes. If the door is under any tension for any reason, the lock (with solenoid operating) cannot exert enough force to retract the bolt into position. As a result, the door will not open until the tension is released.
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 900 mA |
| Stand-by current consumption (A) | 170 mA |
| Power consumption (W) | 2,04 W |
| Power consumption during solenoid operation (W) | 10,8 W |
| Expected per year consumption (kWh) | ~ 18 kWh |
| Breaking point (N) | 7845 N |
| Breaking point (kgf) | 800 kgf |
| Type of control | power cut |
| Reclosure delay | 0 / 3 / 6 / 9 s |
| Behaviour (in case of power off) | Fail-safe |
| Product family | YLI bolt lock |
| Monitoring | door sensor |
| Type of monitoring | Reed relay |
| Door monitoring signal type | NO |
| LED feedback | no |
| Opening direction (DIN 107) | universal |
| Field of use | interior door, entrance doors, aluminium doors, wooden doors |
|---|---|
| Mounting | flush mounted (hidden), flush mounted with bracket |
| Package contents | bolt lock, armature plate, fixing screw |
| Related brackets | BBK-500, BBK-601 |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 205 x 35 x 41,5 mm |
| Distance between fixing holes | 186 mm |
| Dimension of armature plate | 90 x 25 x 2 mm |
| Mortise dimension | 140 x 29 x 40 mm |
| Shape of bolt/latch | bolt |
| Dimension of bolt/latch | 16 x Ø16 mm |
| IP rating | unclassified |
| Environmental temperature | -10°C ~ +55°C |
| Gross weight | 0,69 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
