SKU
YE-301-S

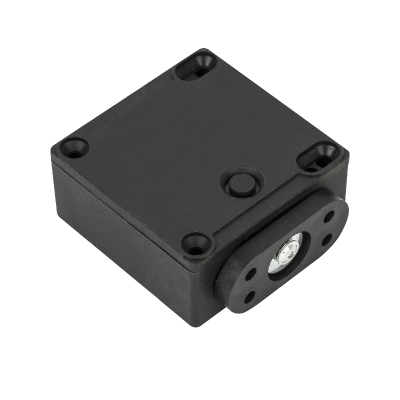

Electric cabinet lock - 12V DC - fail-secure
€41.00
Description
The YE-301-S is a fail secure, small-sized electric cabinet lock. It's ideal for cabinets and locker doors. It requires 12V DC to operate. When the device receives voltage, it releases the latch of the counter part. Installation is extremely simple, and it requires a controller for operation.
WARNING! Keeping the lock under continuous voltage may cause malfunction. It should only be operated with impulse signals. The lock cannot open in the case of a preloaded door.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 320 mA |
| Resistance (Ω) | 37,5 Ω |
| Power consumption (W) | 3,84 W |
| Power comsumption on opening (W) | 3,84 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 2,4 kWh |
| Breaking point (N) | 1079 N |
| Operating modes | needs power to open |
| Type of control | timed pulse (1~15 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Monitoring | door sensor |
| Door monitoring signal type | NO/NC |
|---|---|
| Field of use | cabinets, drawers |
| Mounting | surface mounted |
| Package contents | lock, armature plate |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 55 x 55 x 25 mm |
| Dimension of armature plate | 43,5 x 20,5 x 23,5 mm |
| Shape of bolt/latch | bolt |
| Dimension of bolt/latch | 18,5 x Ø7 mm |
| Gross weight | 0,16 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
