0036 1 406 98 08
SKU
YE-304NO

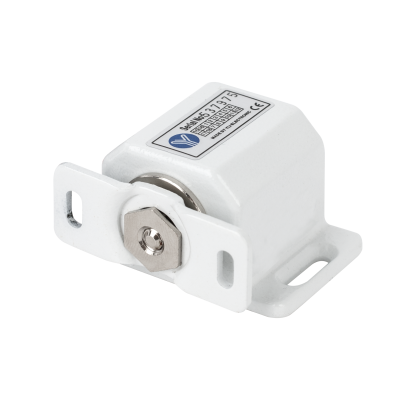

Electric cabinet lock - 12V DC - fail-secure
Ajánlott bruttó ár
Regular Price
€39.00
Special Price
€38.50
Description
The YE-304NO is a fail-secure electric cabinet lock. It requires 12V DC to operate. When the device receives voltage, it releases the latch of the counter part. Installation is extremely simple, and it requires a controller for operation.
WARNING! Keeping the lock under continuous voltage may cause malfunction. It should only be operated with impulse signals. The lock cannot open in the case of a preloaded door.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 100 mA |
| Resistance (Ω) | 120 Ω |
| Power consumption (W) | 1,2 W |
| Power comsumption on opening (W) | 1,2 W |
| Power comsumption on closing (W) | 0 W |
| Expected per year consumption (kWh) | 0,7 kWh |
| Breaking point (N) | 1470 N |
| Breaking point (kgf) | 150 kgf |
| Operating modes | needs power to open |
| Type of control | timed pulse (1~15 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-secure |
| Low power consumption? | yes ( ≤ 260 mA ) |
|---|---|
| Opening direction (DIN 107) | universal |
| Field of use | cabinets, drawers |
| Mounting | surface mounted |
| Package contents | lock, armature plate |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 50 x 32,2 x 26,8 mm |
| Shape of bolt/latch | bolt |
| Gross weight | 0,22 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
