0036 1 406 98 08
SKU
YS-621-S

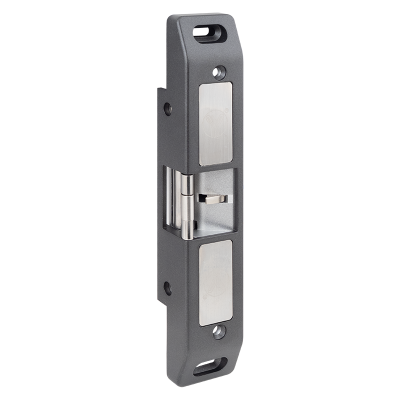

Electric strike for anti-panic lever - 12V DC - fail-safe/fail-secure - door and lock status monitoring
€120.00
Description
 |
 |
 |
 |
 |
 |
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. The YS-621-S is a flush-mounted electric strike anti-panic lever. The device can operate in either fail-secure or fail-safe mode and features door and lock status feedback. |
|||
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 150 mA |
| Resistance (Ω) | 80 Ω |
| Power consumption (W) | 1,8 W |
| Power comsumption on opening (W) | 1,8 W (fail-secure mode) |
| Power comsumption on closing (W) | 1,8 W (fail-safe mode) |
| Expected per year consumption (kWh) | 0,02 kWh (fail-secure mode) 15,8 kWh (fail-safe mode) |
| Breaking point (N) | 9806 N |
| Breaking point (kgf) | 1.000 kgf |
| Operating modes | adjustable (fail-safe/fail-secure) |
| Type of control | power cut/timed pulse (1~15 s) |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | adjustable (fail-safe/fail-secure) |
| Product family | YLI panic doors |
| Low power consumption? | yes ( ≤ 260 mA ) |
| Simmertical? | yes |
| Narrow? | no |
| Mini? | no |
| Radial latch? | no |
| Opening memory? | no |
| Flexibile jaw? | no |
|---|---|
| Unlock feature? | no |
| Latch monitoring | yes |
| Monitoring | lock sensor , door sensor |
| Lock monitoring signal type | NO/NC |
| Door monitoring signal type | NO/NC |
| Opening direction (DIN 107) | universal |
| Field of use | interior door, entrance doors |
| Mounting | flush mounted |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 230 x 40,5 x 30 mm |
| Distance between fixing holes | 207 mm |
| Mortise dimension | 135 x 40 x 10 mm |
| IP rating | unclassified |
| Environmental temperature | -15°C ~ +40°C |
| Common installation errors | WD40 degreaser and corrosion remover spray is not suitable for improving or renewing the lubrication of the electric lock. |
| Gross weight | 0,78 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
