YS-131NC

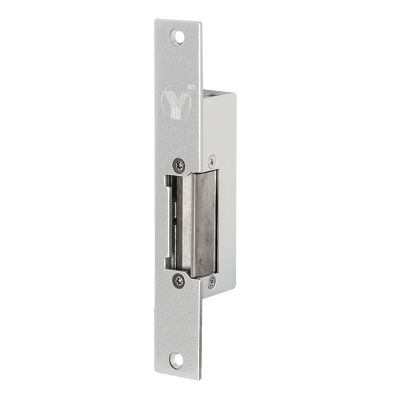

Asymmetrical electric strike - 12V DC - fail-safe - with faceplate
Ajánlott bruttó ár
Regular Price
€27.00
Special Price
€26.50
Description
 |
 |
 |
|
Electric strikes are the most widespread solution for electric door locking, thanks to their versatility in being suitable for almost any type of door. The YS-131NC is a fail-safe electric strike with a short faceplate. |
||
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 210 mA |
| Resistance (Ω) | 58 Ω |
| Power consumption (W) | 2,52 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 2,52 W |
| Expected per year consumption (kWh) | 22,1 kWh |
| Breaking point (N) | 4903 N |
| Breaking point (kgf) | 500 kgf |
| Operating modes | needs power to close |
| Type of control | power cut |
| Opening possibilities | controlled electrical signal |
| Behaviour (in case of power off) | Fail-safe |
| Product family | YLI asymmetric |
| Low power consumption? | yes ( ≤ 260 mA ) |
| Simmertical? | no |
| Narrow? | no |
| Mini? | no |
| Radial latch? | no |
| Opening memory? | no |
|---|---|
| Flexibile jaw? | no |
| Unlock feature? | no |
| Latch monitoring | no |
| Opening direction (DIN 107) | reversible |
| Field of use | interior door, entrance doors |
| Mounting | flush mounted |
| Package contents | faceplate (short) |
| Installation area | indoor |
| Preloaded door opening | no |
| Dimensions | 90 x 25 x 28 mm |
| Distance between fixing holes | electric strike: 52 mm faceplate: 145 mm |
| Dimension of faceplate | 159,5 x 25 x 2,5 mm |
| IP rating | unclassified |
| Environmental temperature | -15°C ~ +40°C |
| Common installation errors | WD40 degreaser and corrosion remover spray is not suitable for improving or renewing the lubrication of the electric lock. |
| Gross weight | 0,3 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
