YSD-230NC
Electromechanical mortise lock for sliding doors - IP65 - 12V DC - fail-safe
€138.00
Description

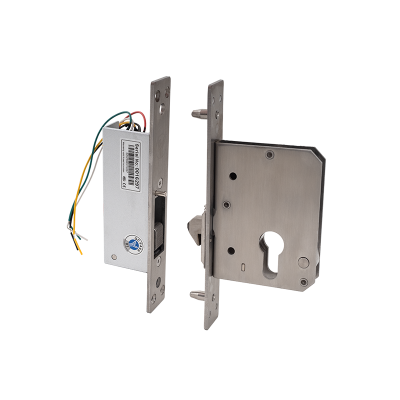

The YSD-230NC is a set of electromechanical mortise locks designed for sliding doors. The set includes a mechanical mortise lock - which automatically locks the hook bolt when the door is closed - and an electric mortise lock.
The mechanical mortise lock can always be opened with a key. The YSD-230NC electric lock is fail-safe (requires continuous power supply), and remains unlocked in the event of a power outage.
It is ideal for ensuring the security of sliding doors, where both traditional key access and electric unlocking are important. It is recommended to install the electrical component of the device inside the door frame, eliminating the need for wiring on the moving part. The lock operates on a 12V DC power supply and can withstand a pulling force equivalent to 400 kg. It features NO-NC door status feedback.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 200 mA |
| Power consumption (W) | 2,4 W |
| Power comsumption on opening (W) | 0 W |
| Power comsumption on closing (W) | 2,4 W |
| Expected per year consumption (kWh) | 2,1 kWh |
| Breaking point (N) | 3922 N |
| Breaking point (kgf) | 400 kgf |
| Operating modes | needs power to close |
| Type of control | power cut |
| Opening possibilities | key, controlled electrical signal |
| Product family | YLI sliding door lock |
| Low power consumption? | yes ( ≤ 260 mA ) |
| Monitoring | door sensor |
| Type of monitoring | Microswitch |
| Door monitoring signal type | NO/NC |
| Field of use | sliding doors, sliding gates |
|---|---|
| Mounting | flush mounted (hidden) |
| Package contents | electrical and mechanical mortise lock, screw set, cylinder rosette |
| Installation area | indoor, outdoor (rain-protected) |
| Dimensions | 170 x 26 x 39,5 mm |
| Dorn distance | 45 mm |
| Dimension of armature plate | 170 x 26 x 93 mm |
| Mortise dimension | Electric part flush mounting dimension: 103,5 x 24 x 36.5 mm Mechanical part flush mounting dimension: 95 x 14 x 73 mm |
| Compatible lock cylinder | EUROPROFILE cylinder |
| Life time | 200.000 opening |
| IP rating | IP65 |
| Environmental temperature | -20°C ~ +60°C |
| Gross weight | 1,5 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
