0036 1 406 98 08
SKU
BXT-120S+OTIC100
Turnstile - 1 leg - semi automatic - drop-arm with access control
€1,298.00
Description

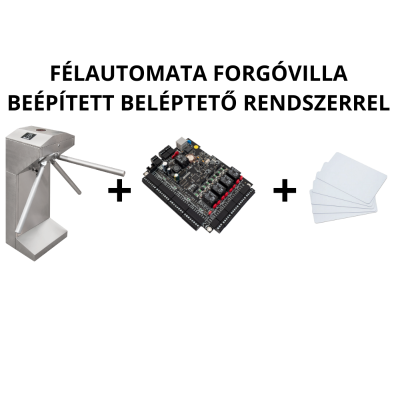

Semi-automatic single-legged drop arm turnstile with built-in access control system
The set includes:
- BXT-120S -> Semi-automatic single-legged turnstile - drop arm

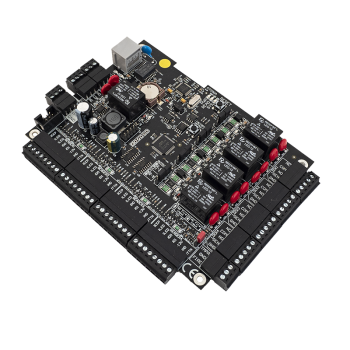

- OTIC-D4 -> Four-door offline network door control center - Otic

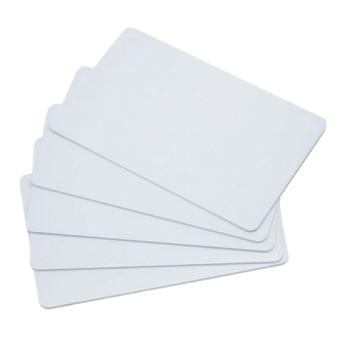

- IDT-1011MF -> 100pcs - RFID card with MIFARE S50 1K chip, thin, white - 13.56MHz
Free delivery within Hungary!
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6A @ 12V DC |
| Consumption (W) | 30 W |
| Body design | brushed INOX ( 1 mm thickness) |
| Dimension of body | 350 x 990 x 420 mm |
| Arm size and type | 500 mm (brushed) |
| Arm cross section | ø38 mm |
| Arm load capacity | middle of arm 80 kg, end of arm 40 kg |
| Return by springs | yes (helps to take position) |
| Lockable? | automatically after rollover |
| Product family | semi-automat, normal-shape, turnstile |
| Automatic closeure | with DIP switch (default 2s) |
| Reclosure delay | 2 - 25 s |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Other functions | continous passage in one direction (adjustable with DIP switch) |
| Communication | RS485 (with BXC-SPIDER communicator) |
| Passage direction | one-way/two-way |
|---|---|
| Passing speed | 20-25 persons/min (40%) |
| Passing width | 550 mm |
| Emergency mode | in case of a power outage or emergency signal, it drops the arm, 12V DC appears on the ALARM output |
| Built-in LED | side (static), above (dynamic) |
| Package contents | turnstile, arms, fixing screws (in concrete) |
| Compatible products | remote control module, BXC-SPIDER - RS485 communicator |
| Recommended use | medium traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Life time | MCBF: 5 million turnovers |
| IP rating | IP42 |
| Environmental temperature | -25°C ~ +55°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 40 kg |
| Warranty | 24 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | E |
