WBK-401-1-12
Single channel short range remote control transceiver set
€21.30
Description

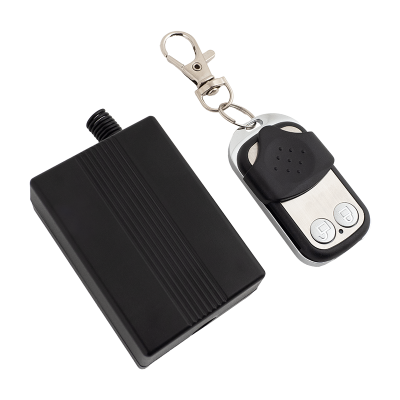

The WBK-401-1-12 is a single channel short range remote control transceiver set.
It contains one RF receiver and 1 transmitter WBK-400A-2. The WBK- 400 product series learns remote control. The set can operate up to 50 meters in open space under optimal conditions. It is the ideal solution for all applications where small space requirements, low power consumption and very good value for money are essential. It can control barriers, gates and garage doors in multiple operating modes. It can also be a useful addition to other security systems.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 10 mA |
| Maximum current consumtion (A) | 40 mA |
| Max. operating distance | 80 m (in open space) |
| Power consumption (W) | 0,12 W |
| Expected per year consumption (kWh) | 1,05 kWh |
| Receiver antenna sensitivity (dBm) | -105 dBm |
| Operation frequency | 433.92 MHz |
| RF code type | Fix code |
| Number of channels | 1 |
| Memory capacity | 30 remote control |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 10A @ 30V DC, 10A @ 250V AC |
| Controlled output timing type | monostable, bistable, timed |
| Controlled output timing | 1-3 sec |
| Operating modes | impulse held, one-button bistable, remote control grade bistable |
| Compatible transmitters | WBK-400A-2, WBK-400A-4, WBK-401B, WBK-400B |
| Power failure feedback | None |
| Antenna type | Wire antenna |
| Tamper protection | none |
| Dimensions | 65 x 33 x 24 mm |
|---|---|
| Installation area | indoor |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +70 °C |
| Humidity tolerance (non-condensing) | max 95% |
| IP rating | unclassified |
| IK rating | None |
| Gross weight | 58 gr |
| Package contents | 1 pc RF receiver, 1 pc remote control with battery |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Number of buttons on remote control | 2 |
| Remote control layout | Portable |
| Remote control button protection | Cover |
| Remote control functions | Controls, Panic |
| Type of remote control battery | 1x LR27A |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | 10 mW |
| Modulation | ASK |
| Remote control dimensions | 58 x 33 x 14 mm |
| Product category | A |
